Technical Specifications

 Product Introduction

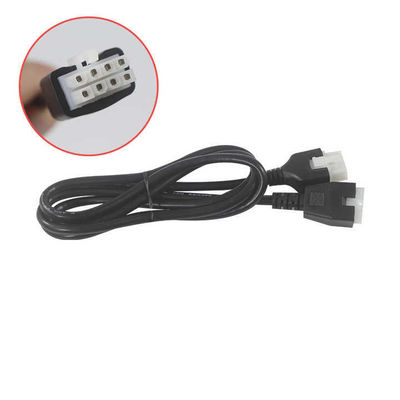

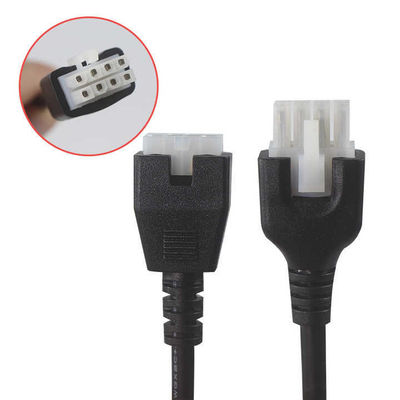

This 8-Pin Power and Signal Cable with Split Leads is designed for combined power and control transmission in compact systems. Ideal for LED controllers, industrial sensors, automation modules, and DC motor wiring, it provides separate wires for easy connection and clear circuit management.

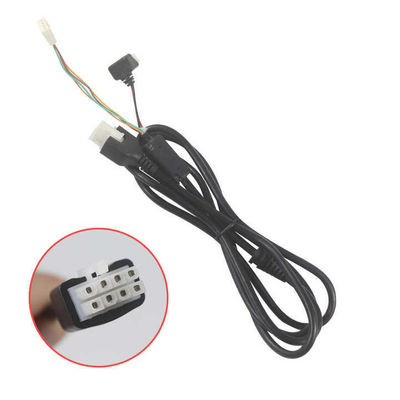

The split-lead design ensures fast wiring to terminals, boards, or connectors, especially in space-restricted or customized applications.

 Product Features

• Multi-Core 8-Wire Configuration – Supports mixed power/signal circuits

• Pre-Split Wire Ends – Easy to solder, crimp, or screw into terminals

• Flexible Outer Jacket – High resistance to bending and abrasion

• Optional Pin Mapping / Labeling – For faster installation

• Custom Connector Termination Available

 Typical Applications

•  LED Pixel Controller to Light Bar / Driver Board

•  Motor Control Modules and Stepper Drivers

•  Signal Interface for PLCs, Industrial Sensors

•  Embedded Systems and Prototyping

•  Low-voltage DC Distribution Projects

 Safety & Wiring Guidelines

• Do not exceed voltage/current per conductor (typically 5A)

• Ensure correct polarity and pin assignment for split wires

• Use heat shrink or terminal caps for unused leads

• For outdoor use, consider waterproof jacket customization

 OEM / ODM Options

Frequently Asked Questions (FAQ)
